BRILENS MN850Wpico projector android system upgrade step

2017-07-10

MN850W projector android system update step:

Preparation:Download installation tool

1. Diver installation: open diver setup file to install until finished(for win7 system, install with Administrator identity. For one PC, on the condition that tools and driver setup path keep unchanged, the driver installation only need once.)

2. Prepare upgrade tool, firmware (the suffix should be .img ), power adapter, machine that needs to be upgraded and corresponding USB cable.

710722653121889733
Upgrade Preparation

Operate device in upgrade mode and connect with PC.



Upgrade Steps

1. Open upgrade tool, upload firmware until finished.

2. The machine enters into upgrade mode and connect with PC, find device in the tool.

3. Click “ Restore ” button in the tool to upgrade until finished.



1: Install Driver

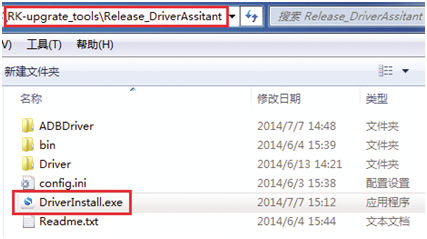

Select “ Driver ” file

Click “ DriverInstall.exe”

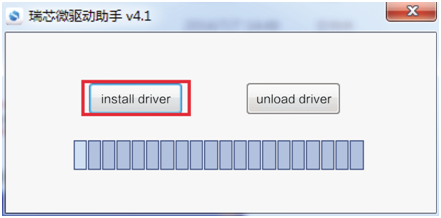

Click “ install driver ” and waiting for installing finished

DL-S6+32G英文说明书-13



2: Open upgrade tool,load firmware

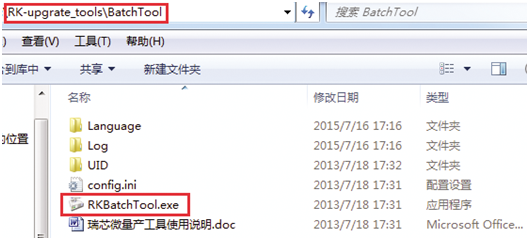

  Select files of upgrade tools

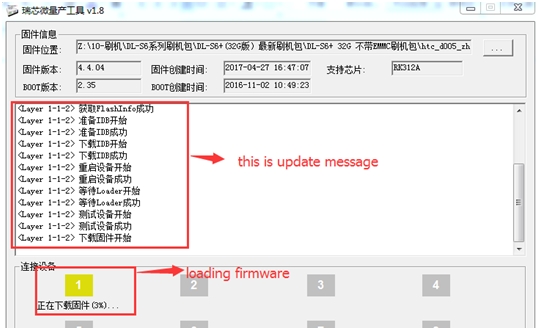

   Load Firmware

IMG_256

3: Operate device in upgrade mode

IMG_256

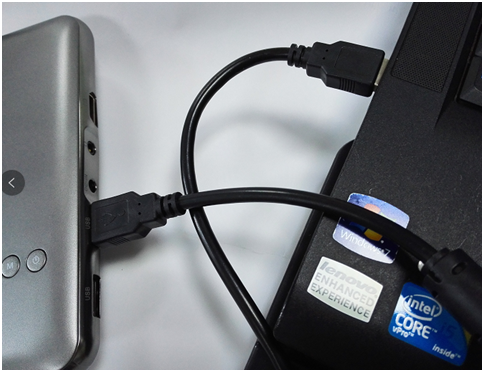

a.         Connecting with PC by USB cable.

b.   Switch power button to the right side IMG_256

c.  Keep pressing upgrade button for a few seconds, and then press start key IMG_256till blue LED light turn on,select device in upgrade tool.

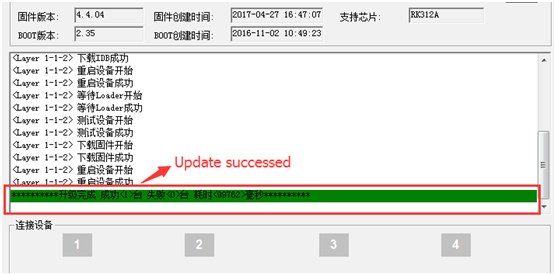

d. Click “ Restore ” and waiting for upgrade finished.

IMG_256

IMG_256

IMG_256

Note: If the upgrade is unsuccessful, try again later.
